Description

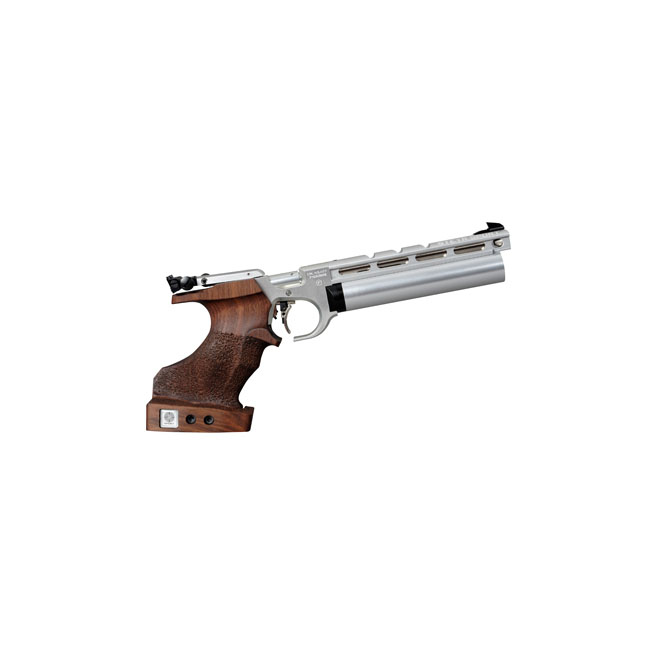

The new evo 10 with mechanical trigger:

• NEW: 8 duct compensator
• Rotable front sight and rear sight
• Patented STEYR Stabilizer from the nearby unbeatable LP 10
• Three barrel vents steady the weapon additionally when shot is released
• Infinitely adjustable STEYR precision ball bearing trigger
• Maximum safety: shot only possible when bolt is fully closed

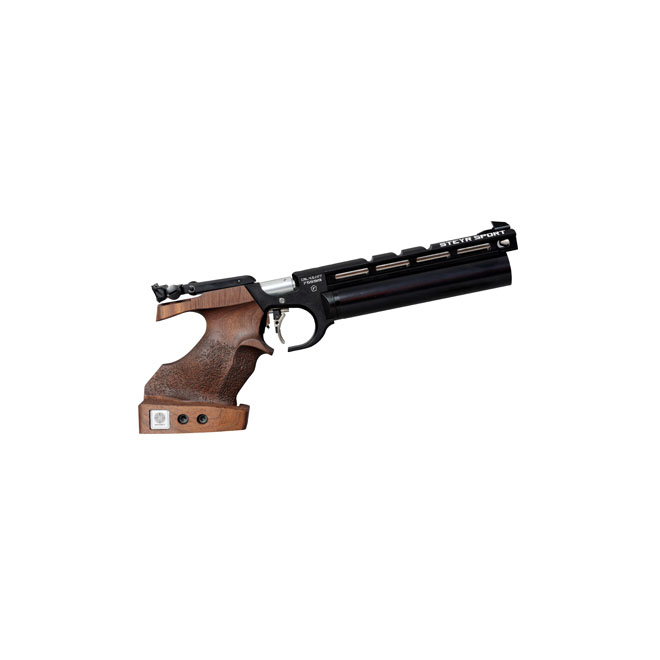

• Pistol available in silver or black, with compressed air cylinders in silver,
  black, blue or gold, thirteen different redesigned grips available

Specifications:

• action type: Single-shot pistol for pellets
• propellant: Compressed air
• calibre: 4,5 mm (.177)
• length / height / widht: 350 / 148 / 50 mm
• weight: 901 g
• length of sight: 266 – 315 mm
• front sight: moveable, rotable frint sight 4,5 mm
• rear sight: rear sight 2 – 6 mm variable, depth 1 – 3 mm, rotable
• trigger pull: 500 g
• trigger settings: first stage length & weight, second stage weight, trigger stop
• trigger blade adjustable: Trigger blade adjustable in height and length, axially and radially

Scope of delivery

• plastic case
• 4 x 10 g barrel weight
• 2 Compressed air cylinder with pressure gauge, available in silver, black, blue
• tools
• spare O-rings
• filling adapter
• operator’s manual
• STEYR tin clip
